Precise, Productive Spreaders
March 21, 2013
John Deere 4940 unit with dry box.
John Deere
The John Deere 4940 Sprayer can be used with New Leader dry spinner spreader attachments. With up to 105-foot spread widths, the spreaders are capable of spreading 25% to 50% wider than most others on the market, says the company, covering more acres per day and increasing productivity. John Deere’s pressure- and flow-compensated hydraulics allow operators to maintain spinner speed throughout each pass, as well as maintain spread widths even when rpms are reduced. For multi-season use, the operator can convert from liquid to dry application in just a few hours.
AGCO/Willmar
Willmar Super 150
Nimble and quick, small yet productive, the Willmar SUPER 150 is designed specifically for orchard and vineyard applications, as well as for smaller pastures. Built with 409 stainless steel and corrosion-resistant materials, it features two 25-foot spinners that deliver a total spread of 50 feet using a 100% overlap pyramid-type pattern that reduces spread pattern variations due to wind and rough terrain. With optional orchard deflectors, two spinners deliver a 15-to 25-foot total spread width and are designed to place the bulk of the material at the center of the orchard rows.
AGCO/Willmar
Willmar Super 800
No job is too big for the durable, productive and accurate Willmar SUPER 800. A mechanically simple chain and gear conveyor system allows operators to control application rates in low or high ranges, from 311 to 1,033 pounds of material per acre. Two spinners create a total spread pattern of 80 or 100 feet, respectively, and using a 100% overlap, produce a pyramid-type pattern. A single spinner provides a 65-foot total spread pattern. The S-800 also offers quick, easy set-up, a front window providing a clear visual on the remaining product and lighting and reflective devices for additional road safety.
Case IH
Case IH 810 Flex-Air
Designed to increase productivity and profitability, the Case IH 810 Flex-Air Applicator applies fertilizer, micronutrients and granular herbicides in an accurate, uniform pattern, regardless of product size, shape, or weight. Patented “field leveler” independent suspension booms mounted over the chassis’ center of gravity form a stable spreading platform even at higher field speeds, while co-ap bins and the liquid system are mounted externally to maintain full capacity of the main bin for more acres between fill-ups.
Chandler

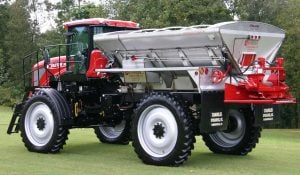

Chandler FTLH-EXW
Designed to fit almost any floater chassis, the new FTLH-EXW has the same dependability, accuracy and reliability that Chandler spreaders have been known for nearly 44 years, with a new, cleaner design and wider spread patterns (90 feet for fertilizer, 60 feet for lime). The company says its field-proven dished type spinners with a new four-blade system give the FTLH-EXW an oval pattern that’s been the desirable pattern throughout the industry for many years. All Chandler spreaders are available with optional Raven Control systems.
Chandler

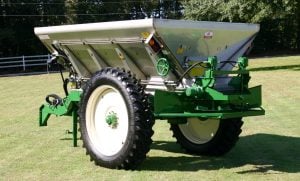

Chandler AT-FTLH-EXW
The AT-FTLH EXW spreader features Chandler’s new Adjustable Track Axle, 380/90R-46 tires, and wider spread patterns (80 feet for fertilizer, 60 feet for lime). It has a capacity of 10 tons fertilizer and 12 tons lime, with application rates from 50 pounds per acre to over 800 pounds per acre of fertilizer — and from 500 pounds to over 4 tons per acre of lime. This rig is designed for over the crop application; its true adjustable track axle can be adjusted from a 72-inch track all the way out to a 120-inch track. This allows the grower to apply fertilizer on almost any row width. As with all Chandler spreaders, this unit is available with Variable Rate Control and is also available with ISO Ready.
GVM
GVM Double Duty Fusion Ready
The 11-ton (330 cu. ft.) GVM Double Duty Fusion Ready (DDFR) spreader offers a unique control system and the widest, most accurate spreading pattern in the industry, says GVM. Its guaranteed 90- to 105-foot spread pattern is made by a patented, reverse rotating spinner and the pre-adjusted funnel which forces material to fall directly onto the spinner disc, in the same location each time, to reduce spreader adjustments based on density. The DDFR is capable of spreading fertilizer, gypsum, lime, most litters and solid waste. It can spread up to three products with additional bins, features a 34-inch belt-over chain conveyor and is available in 304 or 409 painted stainless steel. The 11-ton DDFR is designed to be carried on the E325 and E370 GVM Prowler.
GVM

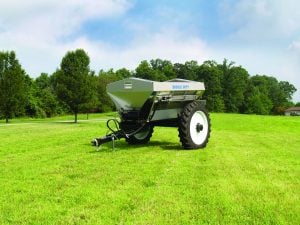

GVM Double Duty Spreader Line
GVM’s Double Duty spreader line (pull-type pictured here) offers unique control systems and the widest, most accurate spreading pattern in the industry, regardless of varying terrain, says the company. The Double Duty’s wide and accurate spread pattern is due to its patented, reverse rotating spinners and the pre-adjusted funnel, which forces material to fall directly onto the spinner disc. The Double Duty offers a guaranteed 90- to 105-foot spread pattern at a less than 15% coefficient of variation with granular fertilizer. Its wider spread pattern allows you to make fewer trips through the field, to minimize compaction and reduce fuel consumption.
RBR
RBR Vector 300
The Vector 300 high-clearance spreader is equipped with an 8.3L Tier 3 Cummins engine producing 305 HP. The Allison 4-speed transmission features a dual mode shift selector which allows the operator to select a higher torque curve and allows the machine to quickly get to application speed without leaving a footprint in the field. The air over shock suspension gives the Vector an unsurpassed ride in any field condition, and the new “load-sense” steering allows effortless turning in any RPM range.
Simonsen
Simonsen SMC2584S
The Simonsen SMC2584S 8-ton pull type dry spreader is designed for many years of trouble free performance. Stainless steel is used in all critical areas, and this spreader features heavy duty frame and suspension, easy maintenance, and very accurate spread patterns. Many options are available for this model including VRT capability, higher sides, and several ways to drive the distributor fan.
New Leader/Highway Equipment
New Leader L4000G4
The New Leader L4000G4 crop nutrient applicator is a culmination of the best Highway Equipment has to offer. The L4000G4 spreads fertilizer and ag lime faster, wider and more consistently, even in changing weather conditions. Options include a #4 belt-over-chain conveyor for combination fertilizer/lime applications or #3 pintle chain for aggressive lime applications, and standard hydraulics for combination fertilizer/lime applications or high performance hydraulics for heavy lime applications. Add a MultiBin and spread up to four products in one pass, to save time and money.
Force
Force AgForce & ProForce
The Agforce spinner spreader applies fertilizer, urea, and lime, while the PRO-FORCE is capable of spreading high rates of these three products — plus litter and other hard-to-manage materials. All models can be either chassis or trailer mounted and set up with 1-, 2-, 3-, or 4-product capability. The spinner assembly produces a spread pattern and width that is unsurpassed, says the company. Trailer units are available with row crop or flotation tires or tracks. FORCE Unltd. notes its units boast the largest conveyor drive gearbox in the industry, in-cab electronic control of spinner speed with feedback, control valves that are removed from the “corrosive” rear end, stainless steel hydraulic lines, and a valve assembly that is the most modern and reliable available.
BBI
Triad Spreader
Optimized for precision farming, the Triad delivers smarter yields and higher margins with targeted application of nutrients from its three-hopper system. It gets the right amount of material to the plants that need it while reducing waste along the way. Available in pull-type and truck-mount models, the Triad features independent, variable-rate control with on-the-fly mixing of dry material, saving producers time and money. It comes standard-equipped with BBI’s exclusive Binary Manifold, an ISOBUS connection platform that harnesses the machine’s hydraulic power to an array of precision agriculture technology offerings in the market.
Precision Tank & Equipment
Precision Tank & Equipment now carries the New Leader G4 series dry spreaders on its Pacesetter XL unit.
PT&E now carries the New Leader G4 series dry spreaders on its Pacesetter XL unit. (The spreaders can be mounted on a Kenworth chassis.) The L4000 series spreader rates range from 75 pounds of fertilizer per acre to over six tons of lime per acre, and spread widths can reach up to 90 feet. Hydraulics — PTO-driven from the transmission — supply power to both the conveyor and the dual 24-inch independently-driven spinners. The 14-foot models hold 300 cubic feet of material struck, and more heaped. The MultApplier attachment can be added so some models.
Miller-St. Nazianz

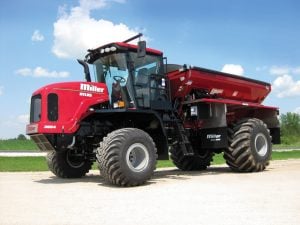

The Miller Atlas 3654 is rated for up to 2,000-gallon liquid systems — or it can be equipped with either a 13- or 14-foot dry spinner box.
The “rock solid” Miller Atlas 3654 can handle the most rigorous field conditions, says the company. It is rated for up to 2000-gallon liquid systems — or it can be equipped with either a 13- or 14-foot dry spinner box, depending on the Atlas wheelbase option. The Atlas chassis can be easily converted from a floater to row crop unit. Removable fenders give drivers an exceptional row crop site line to the front tires from the Atlas cab. Row crop tires are centered at 90 inches tread width. A 365 Cummins QSL 8.9L diesel engine supplies power with great fuel economy.
