12 Self-Propelled Sprayers Lead the Way in 2019
A lot of new products are generating buzz from attendees at this year’s winter trade shows. But perhaps no piece of equipment draws more interest from visitors than the self-propelled sprayer. Maybe it’s the dramatic spray booms, that now reach lengths upward to 160 feet. Or the stainless tanks, which can now hold more product than ever before. Many applicators like the comfortable cabs that most units now boast, as well as the latest technology that makes applying product as efficient and accurate as possible. For a look at the self-propelled sprayers that are likely to receive a lot of attention from ag retailers this season, view the slideshow above.
-
-
1 of 12

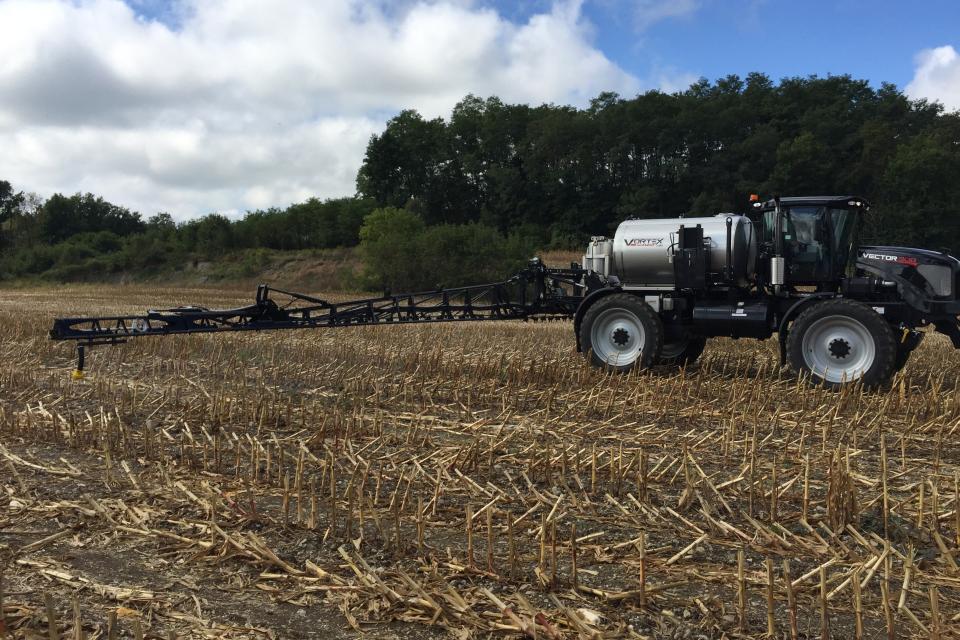

Vortex
RBR Enterprise
The RBR Vortex Sprayer is equipped with a deep sump 1,600-gallon stainless tank, a center section made from 4- X 4-inch high strength steel, and heavy-duty nine-section steel booms. Paired with a high volume, stainless steel 240 GPM pump, the Vortex is capable of performing low volume rates up to high volume liquid fertilizer. All Vortex Sprayers are equipped with an ISO hydraulic quick-connect bulkhead that allows for a clean and seamless change from the liquid system over to a dry spinner box. -
2 of 12
RoGator C Series
AGCO Corp.
The RoGator C Series with exclusive LiquidLogic system is engineered to enhance productivity and improve operator and crop safety. FlowLogic for product recirculation, NozzleLogic for precise on/off section spray control, OptiMotion for auto agitation, OptiLoad for reload station keypad operation, and ClearFlow for full system or just boom product recovery are only a few of the other features from which operators have to pick. -
3 of 12

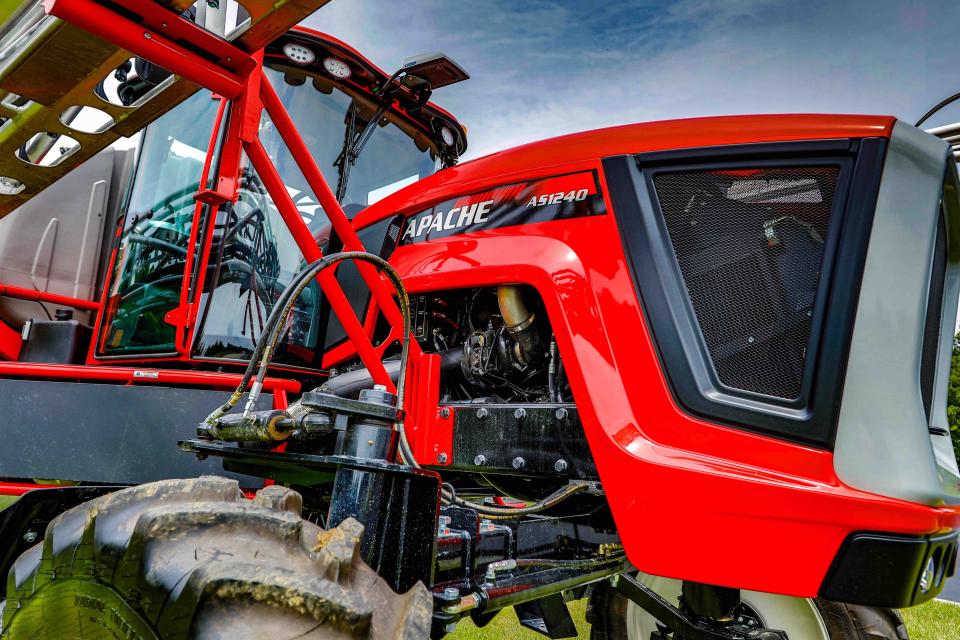

AS1240
Equipment Technologies
The 2019 model year Apache Sprayers feature many new components that improve machine durability, longevity, operator convenience, and comfort, all while keeping the sprayers up to 33% lighter than competing sprayers, the company says. The improvements offered include a new one-piece hood design that makes it more durable in rough field conditions, an added cross member under the product tank to improve load distribution and balance, and higher capacity and splined kingpins with the optional adjustable axle. -
4 of 12

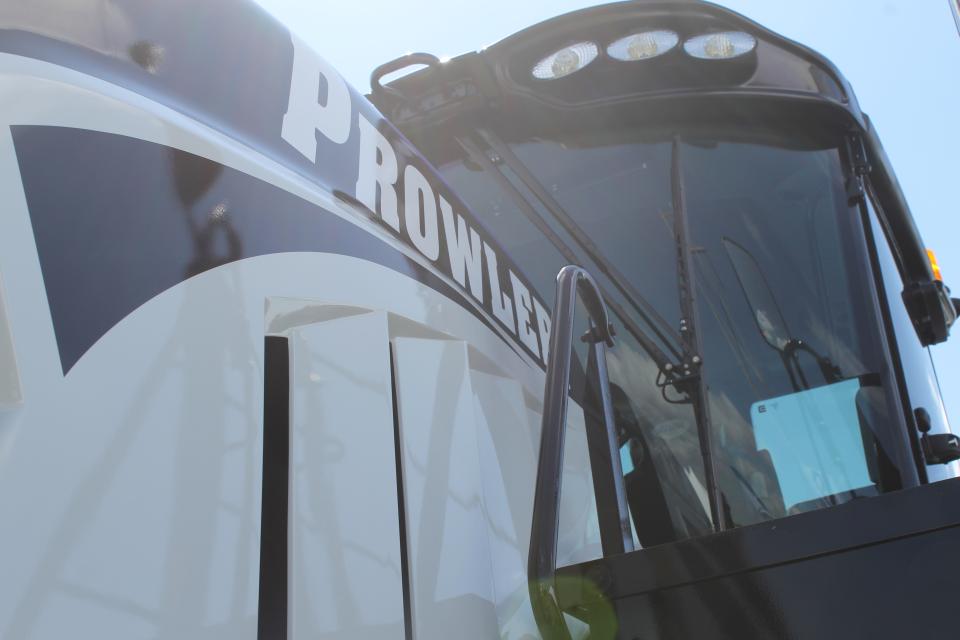

T380 Prowler
GVM
The T380 Prowler offers one of the industry’s largest sprayer capacities, being equipped with an 1,800-gallon product tank. Built with a Cummins QSL9 380-hp engine, the unit features a 120-foot boom with Hypro Express Ends and a 2+2 individual nozzle control system, allowing operators to perform precise product placement. The T380 Prowler’s system utilizes two nozzles simultaneously to increase the application speed range while maintaining rate. This system is also one of the few compatible with air induction tips for reduced drift. -
5 of 12

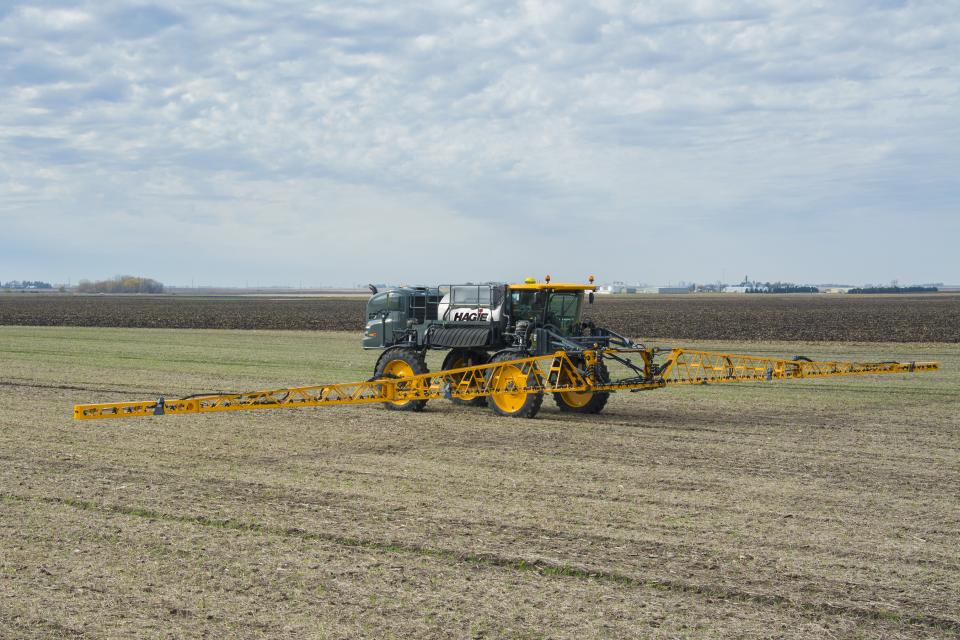

STS 16
Hagie Manufacturing
The Hagie 2019 STS Self-Propelled Sprayer product portfolio offers models ranging from 1,000- to 1,600-gallon solution capacity, packaged together in a well-balanced machine design, featuring 73 inches of clearance, 300- to 375-hp, an application-specific cab, and boom widths ranging from 90 to 132 feet. With special considerations made for front to rear weight split, tight turning radius, narrow crop package, crop clearance, and expanded capabilities for fertilizer application, the STS portfolio equips operators with the capability to perform all full-season application needs. -
6 of 12

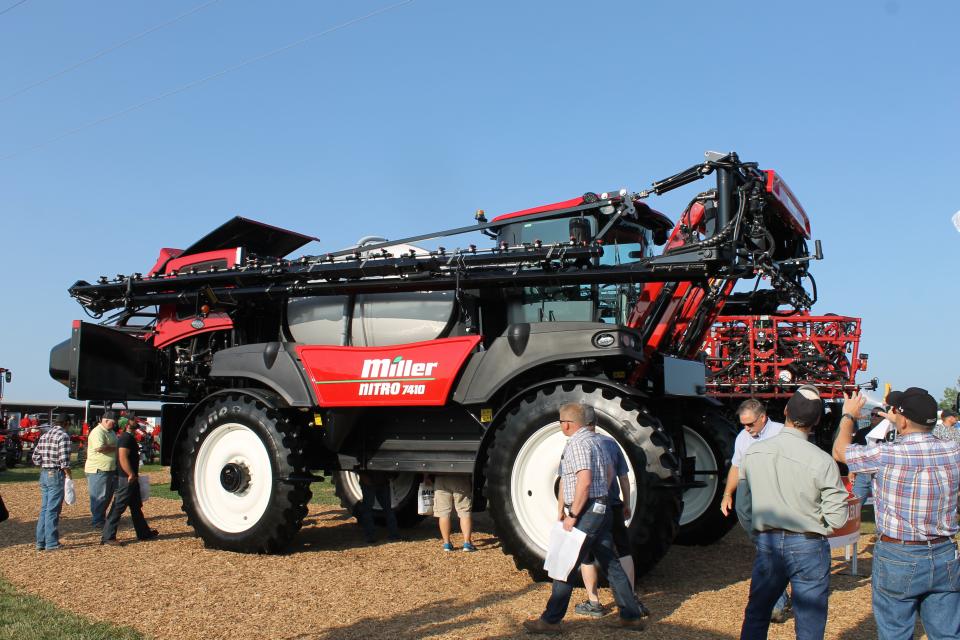

Nitro 7370/7410
Miller-St. Nazianz
The Miller Nitro 7370 and 7410 front boom models are designed to the company’s complete line-up of high-efficiency application equipment solutions. Designed for late-season crop fertility and protection applications, the new models are ideal for custom applicators and growers who are looking for a highly efficient and productive high-clearance sprayer to meet their full season application needs. The Miller Nitro 7370 and 7410 models offer superior crop clearance, with large tank capacities and several front boom width options, along with a wide range of precision technology selections designed to enable custom applicators and growers to achieve the most efficient and accurate applications possible. -
7 of 12

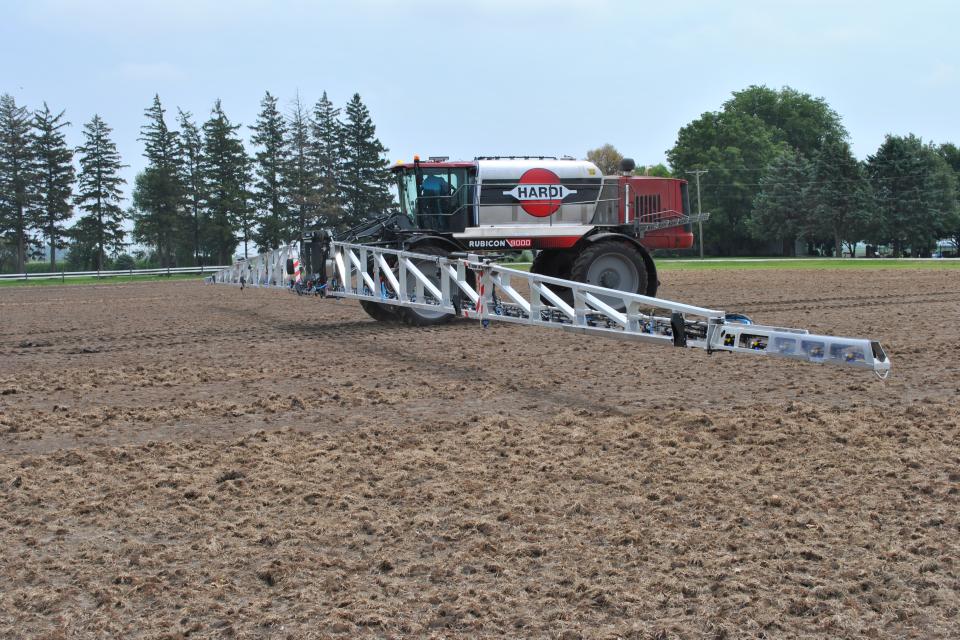

Rubicon 9000
Hardi North America
One of the largest self-propelled sprayers on the market, the Rubicon 9000 features a 2,200-gallon product tank and can be fitted with front-mounted aluminum booms ranging in lengths from 120 to 160 feet. It is equipped with a Cummins 8.9-liter QSL 9, Tier 4F engine capable of delivering up to 380-hp in operation and provides 72 inches of crop clearance. -
8 of 12

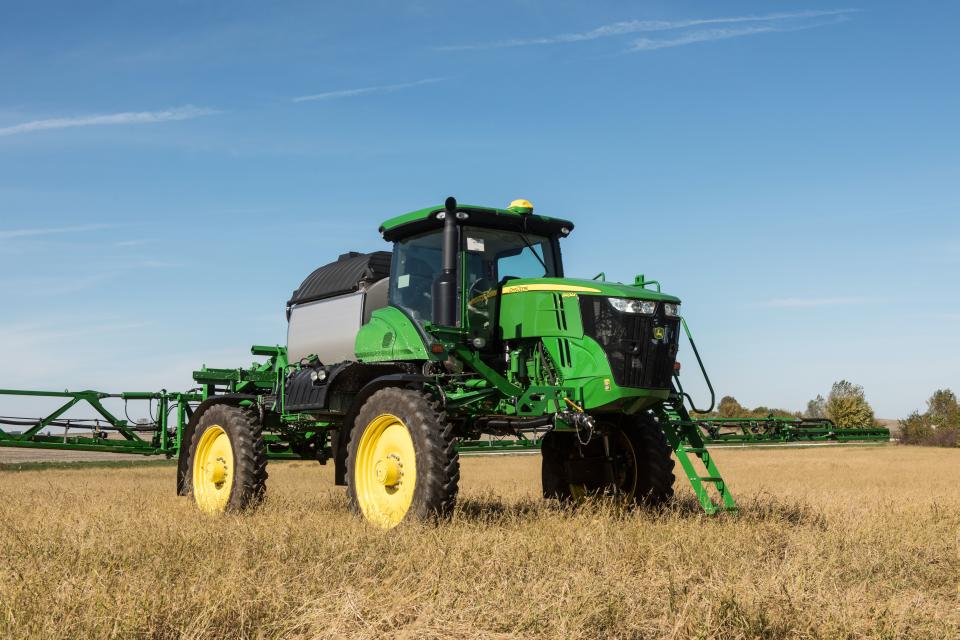

R4044
John Deere
Filling the niche for a lighter-weight, high-tech, high capacity machine, John Deere introduces the R4044. According to the company, this 1,200-gallon capacity sprayer is 9% lighter than the R4045. It features a 325-hp 9-L PowerTech engine. It also comes equipped with the latest integrated technology, including ExactApply, AutoTrac Vision, and a 4600 CommandCenter display. -
9 of 12

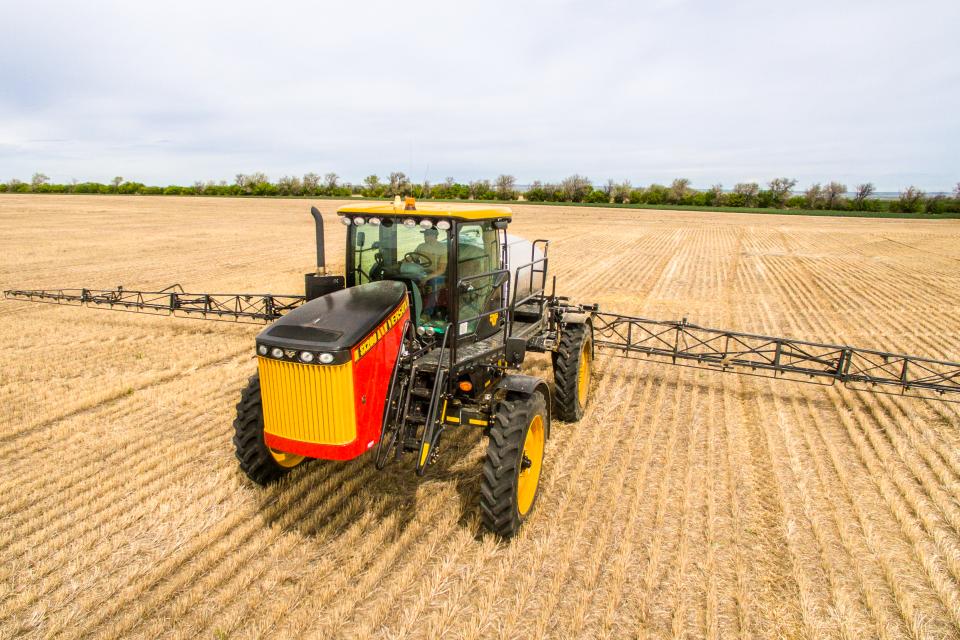

SX280
Versatile
The SX280 is available with optional 120-foot aluminum booms. Additional options include Raven Viper 4, Autosteer-readiness, and rear duals in 320 and 380 tire widths with 22- and 30-inch spacing (wider floatation tires are also available). The rig is powered by a Cummins QSB6.7L meeting interim Tier 4 emission standards. Buyers can choose product tank options of a 1,200-gallon stainless steel or 1,000-gallon polyurethane tank. -
10 of 12

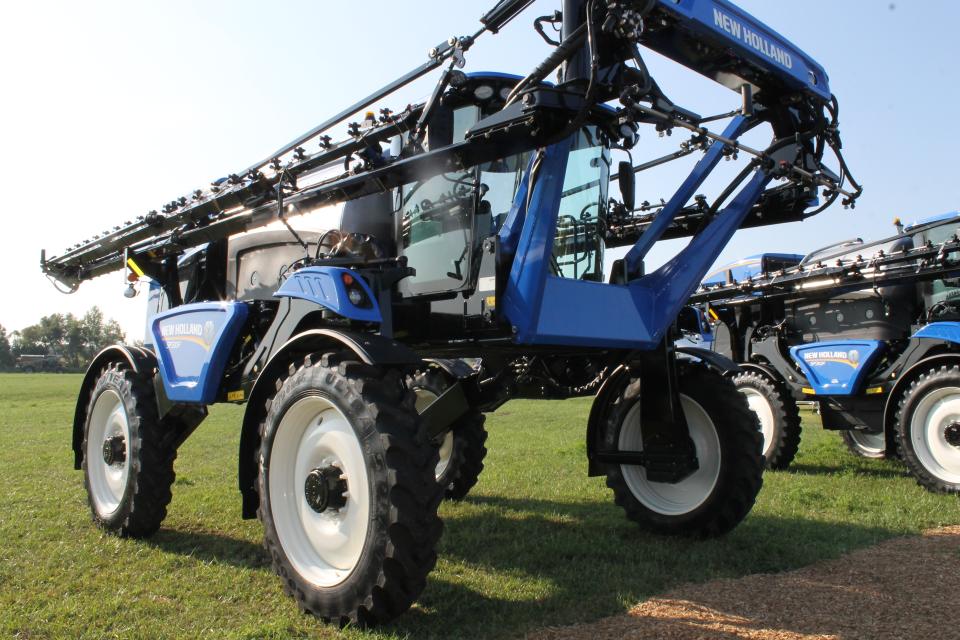

Guardian
New Holland
The Guardian front boom sprayer provides the features that operators demand, the company says, including front-mount booms up to 135 feet, luxury cab, great visibility and ride, and tanks up to 1,600 gallons. -
11 of 12

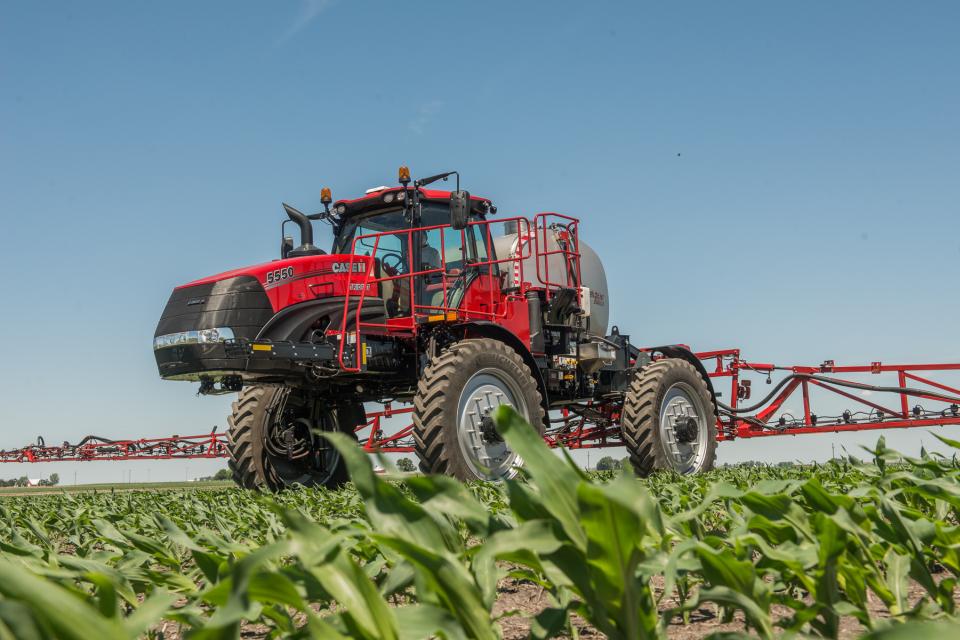

Trident 5550
Case IH
The Trident 5550 combination applicator features the optional New Leader NL4500T G4 Edge variable-rate, dry-nutrient applicator and a new level of precision dry-product application. The main hopper can be configured as a single product or the MultApplier option can be added for application of two dry products simultaneously. Adding in the MultiBin option increases application capabilities to four products. In addition to four-product application capability, the NL4500T can carry up to 330 cubic feet to maximize productivity. -
12 of 12

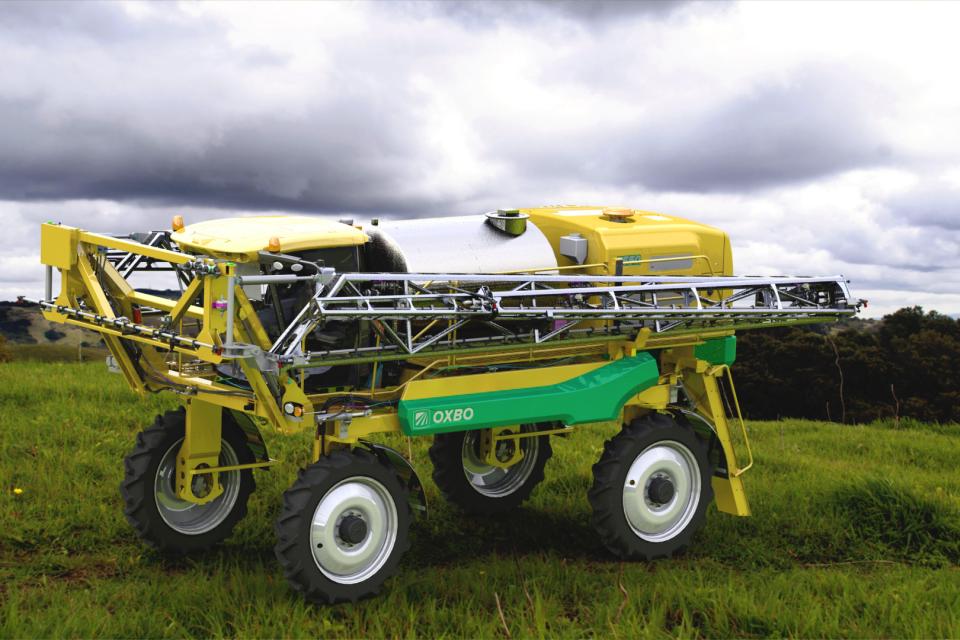

7550
OXBO International
The 7550 features 77 inches of crop clearance and a standard 120-foot aluminum boom. Designed with a 1,200-gallon product tank, the unit is equipped with a Scania DC09 Tier 4F engine capable of achieving 316-hp. The 7550 also comes with full-time four-wheel drive, electro-hydraulic shifting, and high torque final drives. The unit is also designed with patented folding and bolt-on hinge which protects folding cylinder and hydraulic fittings from branches or other obstacles.
